Dimensions and Weights Length: 15’ 5” Width: 94” OAW Height: 8’ 11” G.V.W.R.: 11,400lbs Empty Weight: 6000lbs Payload: Approximately 5,400lbs
Standard Features Engine: 49 hp water cooled diesel Levelwind: automatic lead screw Running Gear: one 10,000lbs single wheel axle with oil bath hubs Brakes: 12 ¼” x 5” electric self-charging break-away system Landing Gear: 12,000lb static drop leg jack Rear Jacks: spring loaded retraction, manual pin type Wheels: 16” 8-hole steel Tires: 235/80R 16” 14-ply Frame: 5x3 rectangular tubing Lights: sealed beam with waterproof wiring in nylon tubing Controls: electric over hydraulic joystick, HP limiting function to allow operator maintainable line speed from full drum to empty drum Pressure Control: hydraulic pressure control valve Hydraulics: closed loop hydrostatic hydraulic drive, integrated 4.4gal hydraulic tank and cooler , hydraulic gearbox with sprocket chain drums , emergency shutdown
Unit Performance Continuous Torque Rating: 36,000lbs Line Speed: 4 mph Actual Full Drum Pull Range: 2,000 lbs

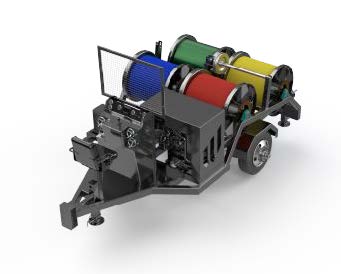

Pulling Reel Specifications Quantity: four Reel Diameter: 36” OD Reel Inside Width: 30 ¼” Core Diameter: 10 ¾” Approximate Line Capacity: 9,000ft of ½” synthetic rope Reel Brakes: hydraulic actuated caliper from operator station with 16” diameter disc Reel Engagement: mechanical clutch engage with lockout function
