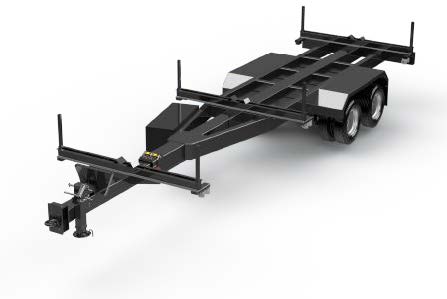

PT24K

Length: Expandable length from 31’ to 47’ (7 pinpoints with equal intervals @ 32” apart)

Width: 8’ OAW, with 95” Bolsters OAW (90.5” useable width)

Running Gear: Two 12,000lb dual wheel axle with oil bath hubs

Brakes: 12 1/4” x 5” electric with self-charging break away style system

Landing Gear: 12,000lb static drop leg jack

Wheels: 16” 8-hole steel

Tires: 235/80R 16” 14-ply

Tongue: 8” x 1/4” and 10” x 1/4” square tube; telescopes on rollers and UHMW

Frame: 10” x 4” x 3/16” & 8” x 4” x 3/16” rectangular tubing

Coupling System: 42,000lb capacity x 2 ½ pintle eye, adjustable in 2 ¼” increments

Lights: sealed beam with waterproof wiring in nylon tubing

G.V.W.R: 26,000lbs

Empty Load: 6,500lbs

Payload: approximately 19,500lbs

Misc.: tie down straps, wheel chocks, safety chains, slide in tube stanchions with keeper pins

Options: 15,000lb axle, additional length, electric over hydraulic disc or drum brakes, extended storage area, custom paint colour, additional toolbox, sliding stanchions
